Hastelloy C22/C276/B2 Forged Fittings

Bhansali Overseas offer a wide spread collection of Alloy C22 / C276 / B2 Forged Fittings among esteemed clients. Molybdenum is the main alloying component in Hastelloy B2 Forged Fittings (UNS N010665) that offers important corrosion resistance to plummeting atmospheres. The high molybdenum and nickel contents in Hastelloy C276 Forged Fittings (UNS N10276) make this alloy particularly resistant to crevice corrosion and pitting in reducing atmospheres while chromium carries resistance to oxidizing media.

Hastelloy C22 Forged Fittings, Hastelloy Alloy C276 Street Elbow, Hastelloy B2 Socket Weld Bushing, UNS N06022 Plug, Hastelloy Threaded Union Suppliers.

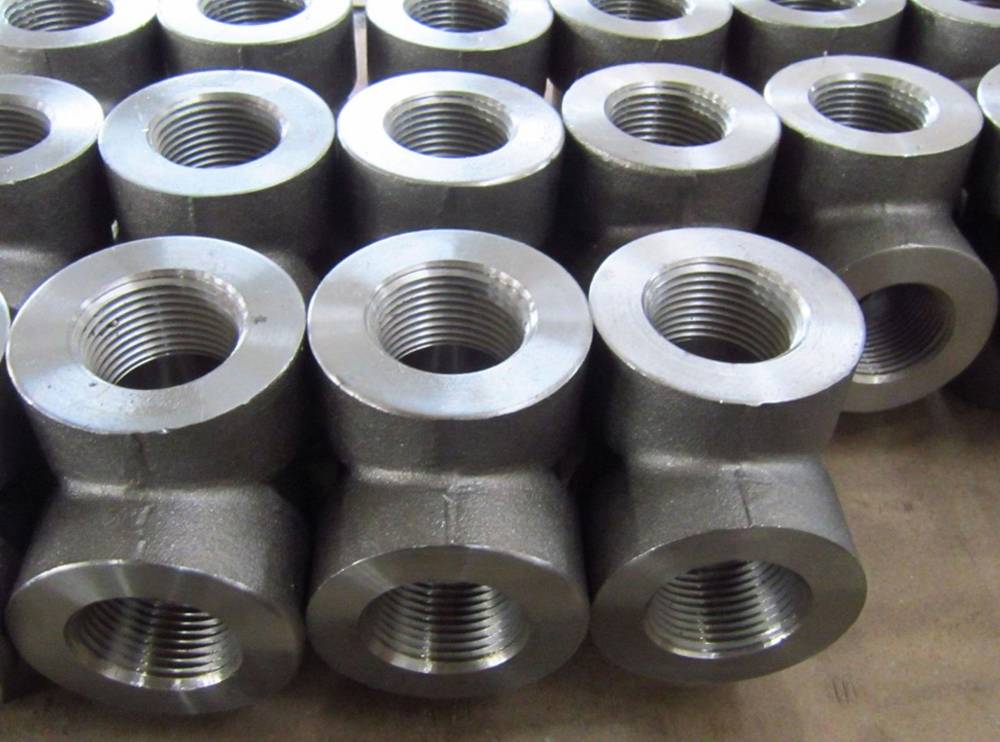

Hastelloy UNS N10276 Swage Nipple, UNS N10665 Forged Socket weld Fittings Manufacturer, Alloy C22 Forged Tees, Alloy C276 Cross, Alloy B2 Bushing Dealers in India.

The soaring content of chromium in Hastelloy C22 Forged Fittings (UNS N06022) offers excellent resistance to oxidizing media although the tungsten and molybdenum content offer excellent resistance to plummeting media. We also offer these Hastelloy Alloy Forged Fittings in customized form with respect to its sizes and shapes to our clients.

Hastelloy C22/C276/B2 Forged Fitting

ASTM B564 Alloy C22, C276, B2 High Pressure Forged Fittings Distributor

Hastelloy Socket weld Fittings Specifications

Hastelloy Threaded Fittings Useful Info

Hastelloy Forged Fittings Main Markets

Hastelloy Forged Fitting Application

Send Enquiry

Most Widely Used Hastelloy Alloy Threaded Forged Fittings, ASTM B564 Hastelloy C22 Bend, Hastelloy C276 Reducer Insert, DIN 2.4617 Coupling Exporter, DIN 2.4819 Hastelloy Pipe Caps, Hastelloy B2 High Pressure Forged Fittings, Hastelloy DIN 2.4602 Union Distributors in India.

Hastelloy C22/C276/B2 Forged Pipe Fittings Equivalent Grades

Standard	Hastelloy C22	Hastelloy C276	Hastelloy B2
UNS	N06022	N10276	N10665
Werkstoff Nr.	2.4602	2.4819	2.4617
JIS	NW 6022	NW 0276	-
OR	-	ЭП760	-
GOST	-	ХН65МВУ	-
EN	NiCr21Mo14W	NiMo16Cr15W	-

Hastelloy Alloy Forged Fittings Specification

Standards : ASTM B564 /ASME SB 564

Dimensions : ANSI/ASME B16.11 & BS3799, etc.

Size : 1/8” to 4”

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings

ASTM B564 Hastelloy High Pressure Forged Fittings Useful Info

Element	Hastelloy C22	Hastelloy C276	Hastelloy B2
Ni	Bal	Bal	Bal
C	0.01 max	0.01 max	0.02 max
Mn	0.50 max	1.0 max	1.0 max
Co	2.5 max	2.5 max	1.0 max
S	0.02 max	0.03 max	0.03 max
Si	0.08 max	0.08 max	0.1 max
Cr	20 – 22.5	14.5 – 16.5	1.0 max
Mo	12.5 – 14.5	15 – 17	26 – 30
Fe	2 – 6	4 – 7	2.0 max
W	2.5 – 3.5	3 – 4.5	-
V	0.35 max	0.35 max	-
P	0.02 max	0.04 max	0.04 max

Element	Hastelloy C22	Hastelloy C276	Hastelloy B2
Density	8.69 g/cm3	8.89 g/cm3	9.2 g/cm3
Melting Point	1399 °C (2550 °F)	1370 °C (2500 °F)	1370 °C (2500 ºF )
Tensile Strength	Psi – 1,00,000 , MPa – 690	Psi – 1,15,000 , MPa – 790	Psi – 1,10,000 , MPa – 760
Yield Strength (0.2%Offset)	Psi – 45000 , MPa – 310	Psi – 52,000 , MPa – 355	Psi – 51000 , MPa – 350
Elongation	45 %	40 %	40 %

Alloy C22 / C276 / B2 Socket weld and Threaded Forged Fittings Supplier

We Supply Hastelloy C22/C276/B2 Forged Fittings in Baroda, Secunderabad, Lagos, Nagpur, Coimbatore, Geoje-si, Mexico City, Gurgaon, Rio de Janeiro, Haryana, Perth, Hyderabad, Toronto, Faridabad, Los Angeles, Surat, Dammam, Ernakulam, Indore, Lahore, Ranchi, Jamshedpur, Kolkata, Edmonton, Melbourne, Jeddah, Hong Kong, Busan, Chandigarh, Colombo, Nashik, Granada, Jaipur, Kuwait City, Vadodara, Doha, Manama, Riyadh, Navi Mumbai, Chiyoda, Mumbai, Bangkok, Karachi, Madrid, Gimhae-si, Ankara, Houston, Calgary, Ludhiana, Dallas, Ulsan, Dubai, New Delhi, Brisbane, Abu Dhabi, Pune, Thiruvananthapuram, London, Ahvaz, Santiago, Visakhapatnam, Noida, Ahmedabad, Istanbul, Chennai, Cairo, Rajkot, Algiers, Port-of-Spain, Hanoi, Al Khobar, Pimpri-Chinchwad, Tehran, Vung Tau, Kuala Lumpur, Sydney, Courbevoie, Montreal, Bogota, Muscat, Ho Chi Minh City, Bhopal, Thane, Bengaluru, Singapore, Milan, La Victoria, Seoul, Atyrau, Jakarta, Sharjah, Caracas, Moscow, Kanpur, Petaling Jaya, New York, Aberdeen, Howrah, Al Jubail.

Alloy C22 / C276 / B2 Forged Fittings Availability Worldwide

We Export Hastelloy C22/C276/B2 Forged Fittings in Bolivia, Sri Lanka, Lithuania, Spain, Libya, Poland, Bangladesh, Bahrain, Kuwait, Namibia, Norway, Oman, Greece, Ireland, Nigeria, Qatar, Azerbaijan, Iran, Russia, Ukraine, Iraq, Bulgaria, Ecuador, Mexico, Ghana, Mexico, Mongolia, Belgium, Malaysia, India, Iran, South Korea, Switzerland, United Kingdom, Bhutan, Finland, United States, Portugal, Gabon, Tibet, Singapore, China, Algeria, Chile, Philippines, Lebanon, Denmark, Jordan, Thailand, Sweden, Angola, Taiwan, Japan, Gambia, Belarus, Afghanistan, Macau, France, Venezuela, Nepal, Romania, Chile, Kenya, Austria, Colombia, Argentina, Vietnam, Saudi Arabia, Netherlands, Germany, Pakistan, Serbia, United Arab Emirates, Zimbabwe, Kazakhstan, Costa Rica, Israel, Croatia, Nigeria, Trinidad & Tobago,Tunisia, Puerto Rico, Egypt, Yemen, Slovakia, Hungary, Turkey, South Africa, Brazil, Poland, Peru, Italy, Czech Republic, Canada, Australia, Morocco, Estonia, Indonesia, New Zealand, Hong Kong.

Hastelloy Alloy Forged Fittings Other Available Products

ASTM B564 Hastelloy Alloy Forged Fittings	Hastelloy Forged Pipe Fittings
Hastelloy C22 Forged Socket weld Fittings	Hastelloy C276 Forged Threaded Fittings
Hastelloy B2 Forged Elbows	Hastelloy Alloy Threaded Tees

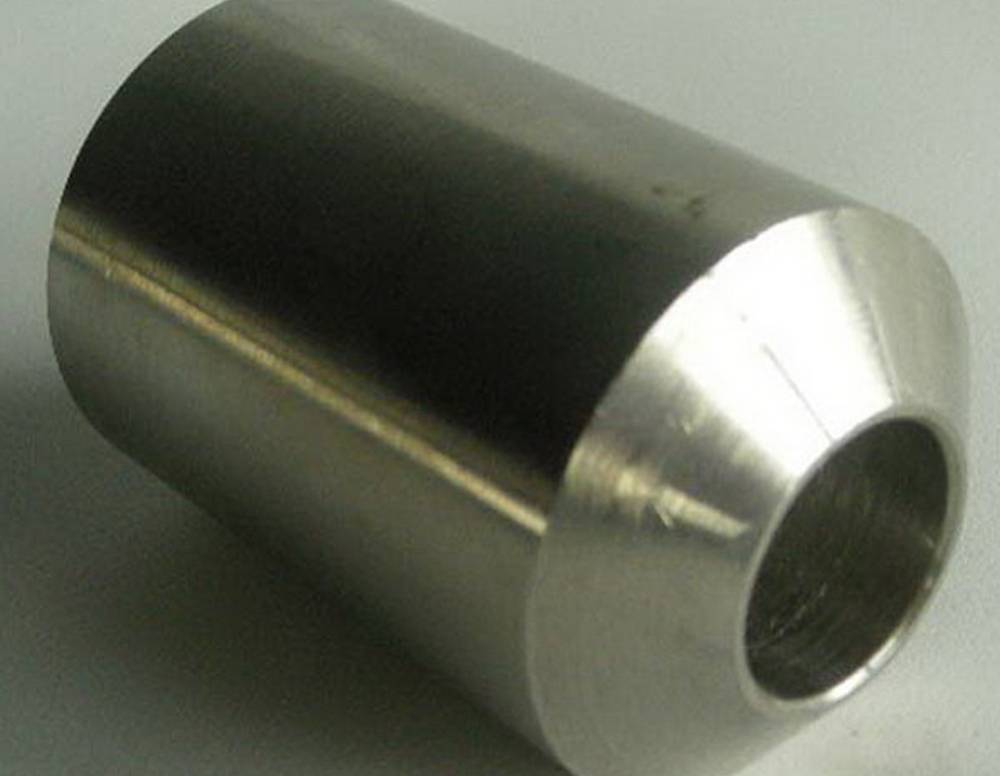

Hastelloy Forged Union Suppliers	UNS N06022 Forged Boss
