Monel 400 and Inconel 625 are both high-performance nickel-based alloys designed for demanding industrial environments, with each delivering strong corrosion resistance across a range of aggressive service conditions. However, they differ significantly in their alloying systems, mechanical properties, temperature capabilities, and ideal use cases. This comparison details those key engineering differences to determine the optimal grade for specific application requirements.
What Are Monel 400 and Inconel 625 Coils?

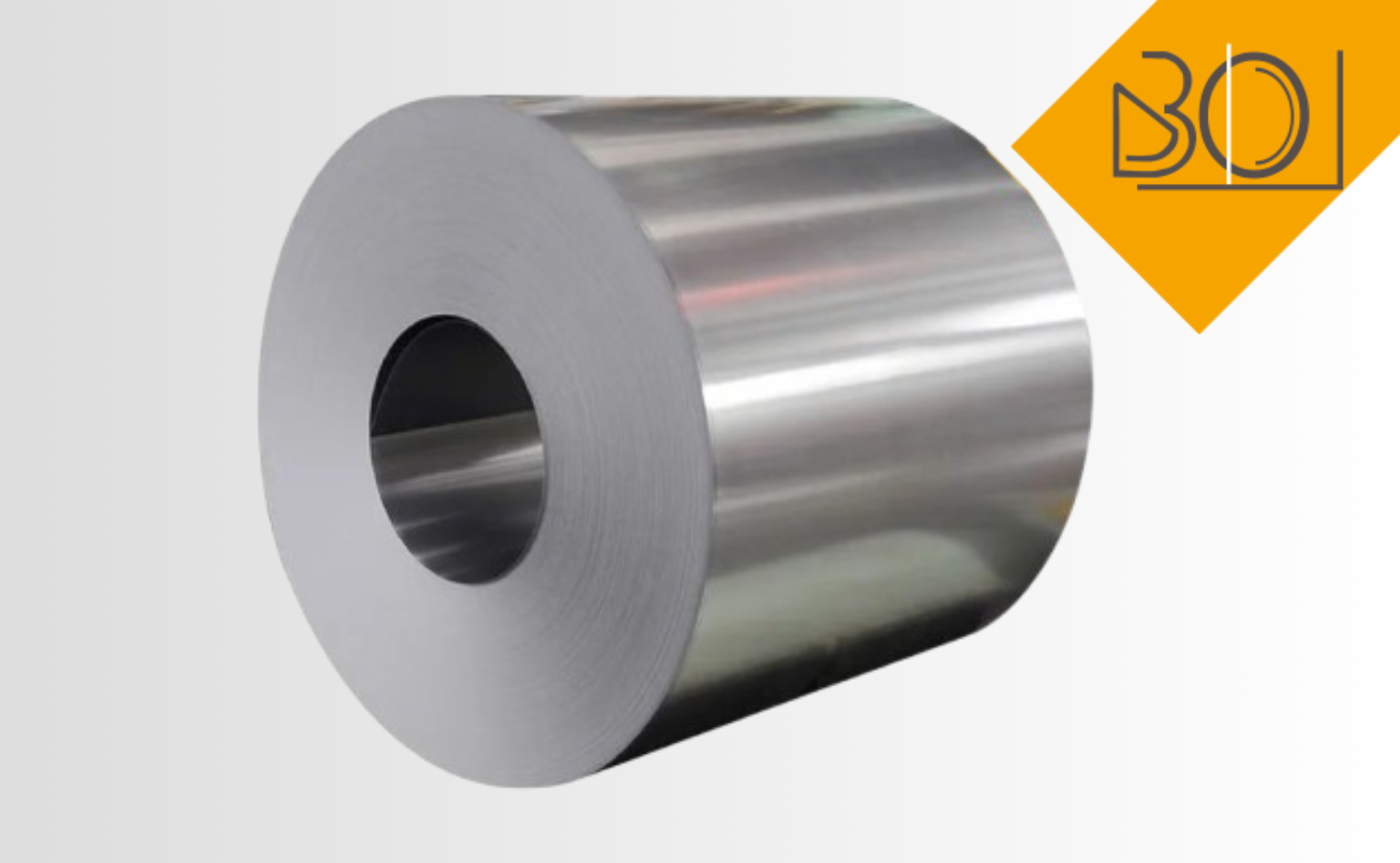

Monel 400 Coil
Monel 400 Coil is a nickel-copper alloy known for resistance to seawater, hydrofluoric acid, alkalis and a range of other corrosive media, backed by good toughness across a wide temperature range.
Inconel 625 Coil
Inconel 625 Coil combines nickel, chromium, molybdenum and niobium, delivering corrosion resistance, high mechanical strength and reliable high-temperature performance together.
Monel 400 vs Inconel 625: Key Differences
| Factor | Monel 400 Coil | Inconel 625 Coil |
| Base Alloy | Nickel-copper | Nickel-chromium-molybdenum-niobium |
| Main Advantage | Toughness and seawater/acid resistance | Strength combined with corrosion resistance |
| Seawater Resistance | Excellent | Very good |
| High-Temperature Performance | Moderate | Strong |
| Pitting/Crevice Resistance | Good | Excellent |
| Strength | Moderate | High |
| Typical Applications | Marine, HF acid, valves, heat exchangers | Aerospace, offshore, power generation |
| Selection Priority | Toughness and specific chemical resistance | Strength and severe localized corrosion resistance |
How Does Their Chemical Composition Affect Performance?
Nickel-Copper Composition of Monel 400
The nickel-copper structure gives Monel 400 strong resistance in reducing environments and seawater specifically, alongside the toughness that makes it forgiving under mechanical stress.
Chromium, Molybdenum & Niobium in Inconel 625
Chromium and molybdenum drive resistance to pitting and crevice corrosion, while niobium supports high-temperature stability, together giving 625 both strength and heat resistance.
How Do Their Mechanical Properties Compare?
Inconel 625 has higher tensile and yield strength than Monel 400 over a wide temperature range and also has good resistance to deformation under continuous load. Monel 400 sacrifices some of its strength so that it may provide exceptional toughness; therefore, it is forgiving in applications where there may be mechanical or thermal shock present and a more brittle material might break instead of absorbing the stress. We recommend 625 where great mechanical strength is needed and Monel 400 when corrosion resistance and toughness are more important than maximum strength.
Which Coil Performs Better in Corrosive Environments?
Marine and Seawater Exposure
Monel 400 has a long track record in seawater and marine atmospheres, valued for decades in this exact service. Inconel 625 also performs well here, particularly where mechanical strength matters alongside corrosion resistance in the same application.
Chemical Processing
The specific chemistry involved, acids, alkalis, and whether conditions are reducing or oxidizing, should guide the choice between the two alloys rather than a general corrosion-resistance comparison that ignores the actual process fluid.
Localized Corrosion
Pitting and crevice corrosion resistance matter most in chloride-rich, stagnant, or crevice-prone conditions, an area where Inconel 625 generally holds an edge.
When Should You Choose Monel 400 Coil?
Monel 400 and Inconel 625 coils serve distinct industrial applications based on alloy composition.
- Valves & Pumps: Monel 400 is good for saltwater handling components and hydrofluoric acid chemical process systems
- Monel 400 maritime equipment: Shields maritime hardware and subsea structures from prolonged, harsh seawater exposure
- Inconel 625 Aerospace: It can deliver excellent fatigue strength for high-temperature exhaust ducting and turbine systems
- Chemical Processing: Inconel 625 shields reaction containers from corrosive, mixed oxidizing and reducing acid solutions
- Inconel 625 Offshore Gas: extremely high-pressure sour gas and deep-sea severe pitting
When Should You Choose Inconel 625 Coil?
Inconel 625 coils fit applications needing high mechanical strength, corrosion resistance, and elevated-temperature performance.
- Aerospace Components: It can withstand high heat stress in many aviation components, such as aircraft engine exhaust systems, thrust reversers and ducting.
- Offshore Equipment: Able to withstand severe pitting and crevice corrosion of subsea deepwater valves, risers and umbilical lines.
- Chemical Processing: Protects reaction vessels, transfer lines and scrubbers against aggressive oxidizing and reducing acids.
- Power Generation: Delivers high creep rupture strength for superheater tubes, boilers, and flue gas systems.
- Thermal Exposure Parts: Maintains structural integrity under continuous heat and severe environmental attack in industrial furnaces.
What Should You Consider Before Selecting Either Coil?
| Selection Consideration | Monel 400 Coil | Inconel 625 Coil |
| Operating Temperature | Suitable for cryogenic up to ~480°C (900°F) | Maintains high strength up to 982°C (1800°F) |
| Corrosive Medium | Superior in hydrofluoric acid, alkalis, and reducing media | Excels in aggressive oxidizing and mixed acid environments |
| Mechanical Loading | Moderate yield strength with high ductility and toughness | High tensile strength and fatigue resistance without aging heat treatment |
| Marine Exposure | Excellent resistance to flowing seawater and biofouling | Impervious to stagnant and high-velocity seawater exposure |
| Localized Corrosion Risk | Moderate resistance to pitting and crevice corrosion | Outstanding pitting and crevice corrosion resistance (PREN > 45) |
| Dimensional Requirements | Supplied in standard strip gauges with good cold-workability | Available in thin to thick coil profiles requiring heavy-duty forming equipment |
| Fabrication Requirements | Readily cold-formed and welded with Monel filler metals | Work-hardens rapidly during cold forming; requires specialized welding consumables |
| Material Standards | Complies with ASTM B127, ASME SB127, and NACE MR0175 | Complies with ASTM B443, ASME SB443, and NACE MR0175 |
Monel 400 Coil vs Inconel 625 Coil: Which One Should You Choose?
Choose Monel 400 Coil when marine corrosion resistance, chemical resistance and toughness are the primary requirements. Consider Inconel 625 Coil when higher strength, severe localized corrosion resistance and elevated-temperature capability matter most. We recommend comparing the actual process conditions, temperature, loading and required service life before finalising either choice.
Conclusion
Monel 400 and Inconel 625 serve different corrosive-service requirements rather than one simply outperforming the other. Monel 400 particularly suits marine and selected chemical environments, while Inconel 625 offers a stronger combination of mechanical strength, corrosion resistance and high-temperature performance. We supply both coil types and can help match the grade to your actual operating conditions.
