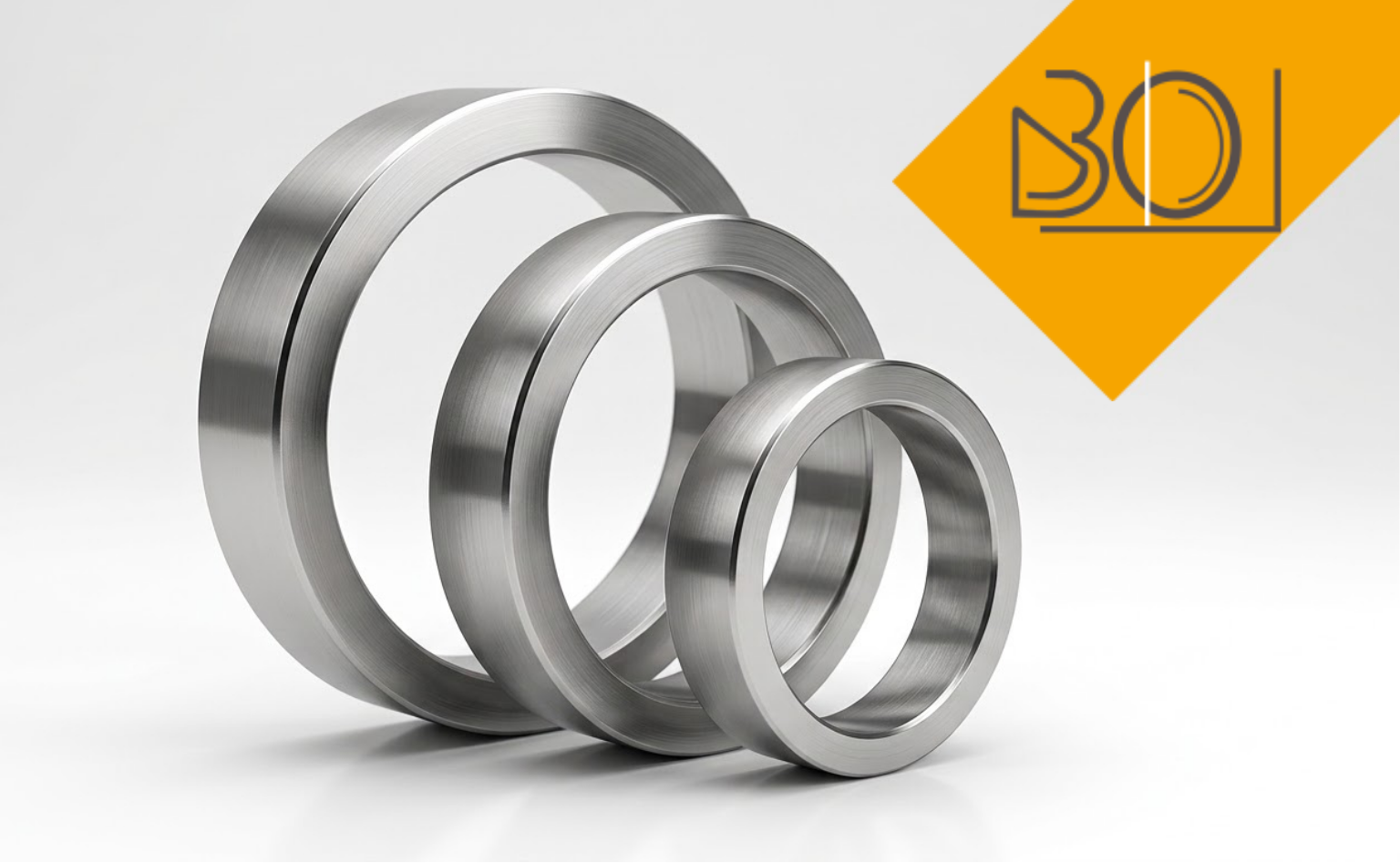

How to Choose the Right Stainless Steel 904L Ring for Your Project

904L is a high-alloy austenitic stainless steel chosen for demanding corrosion-service conditions, from acid processing lines to marine and offshore equipment. Specifying 904L alone does not guarantee the right part arrives at your site. A stainless steel 904L ring needs the correct dimensions, a service-matched design, the right specification, defined manufacturing requirements, and full documentation. Bhansali Overseas supplies 904L sheets, plates, coils, circles and rings, and getting the ring right starts with these six checks.

Confirm the 904L Grade and Applicable Specification

Verify the exact material designation before placing an order. Stainless Steel 904L carries the UNS designation N08904 and the German equivalent Werkstoff 1.4539. Confirm both against your purchase order and drawing. Specifications written for sheet or plate stock do not automatically apply to a machined or fabricated ring. Ask your supplier which ASTM or ASME specification, or which project specification, governs the actual ring form you need, not just the raw flat product it was cut or formed from.

Determine the Correct Ring Dimensions

Dimensional accuracy decides whether the ring fits and functions. Specify the outside diameter, inside diameter, ring thickness, and radial width as applicable to your design. Tolerances matter just as much. State the dimensional tolerance band your application demands, along with the required quantity, so the mill or fabricator quotes the correct process. Match every dimension to the mating component, the design drawing, and any machining allowance your fabrication sequence requires. A ring cut to nominal size without allowance for finish machining will not meet a tight assembly tolerance later.

Match the Ring to the Service Environment

Operating conditions decide whether 904L is the right choice for your ring. This grade resists pitting in chloride-containing solutions and holds up against crevice corrosion and stress-corrosion cracking better than standard austenitic grades. That resistance profile makes 904L a common choice in acidic process streams and chloride-exposed equipment. Review operating temperature, mechanical loading, and the specific chemistry your ring will contact before confirming the grade. A service review at the design stage prevents a costly material swap after fabrication.

Check Manufacturing and Surface Requirements

Establish the required manufacturing conditions before you place the order. Confirm whether the ring will be machined, forged, or fabricated from plate. State the surface finish and edge condition required for your application. Heat-treatment requirements, where applicable, need to be stated up front rather than assumed. Custom dimensions and machining allowances also need confirmation against both the product specification and the supplier’s actual manufacturing capability. Not every finish or method is available for every size or lot of 904L stock.

Verify Material Chemistry and Documentation

Documentation review protects you against non-conforming material reaching your project.

• Chemical composition: Check that the certified chemistry complies with the 904L requirement and not just the supplier’s product literature.
• Mechanical properties: Check tensile strength, yield strength, and elongation figures where your specification requires it.
• Heat and lot identification: Confirm heat or lot numbers are marked and traceable where the project requires it.
• Material Test Certificate: Request the MTC before shipment, not after delivery.
• Traceability: Confirm the certificate chain links back to the original heat and mill source.
• Specification compliance: Cross-check the MTC against the exact standard named in your purchase order.



Select the Ring Based on the Complete Project Requirement

Material selection is based on the total project scope, not just one property, through a structured review process.

• Confirm the required 904L grade against UNS N08904 and Werkstoff 1.4539.
• Define inside diameter, outside diameter, thickness, and tolerances.
• Evaluate the corrosion exposure and operating environment.
• Confirm manufacturing condition and surface finish requirements.
• Verify the applicable standard and required documentation.
• Check material certification and traceability against your purchase specification.
• Confirm the supplied ring matches the project drawing before it ships.

Corrosion resistance is one factor among several. The right 904L ring comes from weighing dimensions, service conditions, manufacturing capability, and documentation together.

Whether you need SS 904L rings, 904L stainless steel rings, or a single custom 904L stainless steel ring for a specific drawing, confirm every point above against your project requirements before you order. Contact Bhansali Overseas with your ring dimensions and specifications to get a quote matched to your exact requirements.
